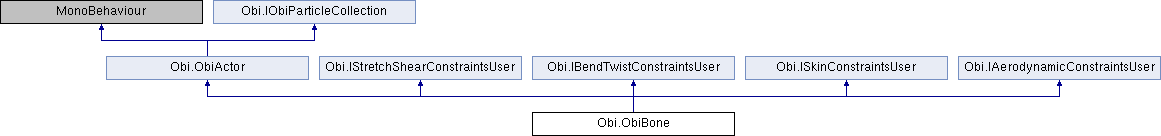

Inheritance diagram for Obi.ObiBone:

Classes
class	BonePropertyCurve

class	IgnoredBone

Public Member Functions
void	UpdateBlueprint ()

override void	RequestReadback ()

override void	SimulationEnd (float simulatedTime, float substepTime)

override void	ProvideDeformableEdges (ObiNativeIntList deformableEdges)

void	UpdateRadius ()

void	UpdateMasses ()

Vector3	GetSkinRadiiBackstop (ObiSkinConstraintsBatch batch, int constraintIndex)

float	GetSkinCompliance (ObiSkinConstraintsBatch batch, int constraintIndex)

Vector3	GetBendTwistCompliance (ObiBendTwistConstraintsBatch batch, int constraintIndex)

Vector2	GetBendTwistPlasticity (ObiBendTwistConstraintsBatch batch, int constraintIndex)

Vector3	GetStretchShearCompliance (ObiStretchShearConstraintsBatch batch, int constraintIndex)

float	GetDrag (ObiAerodynamicConstraintsBatch batch, int constraintIndex)

float	GetLift (ObiAerodynamicConstraintsBatch batch, int constraintIndex)

void	FixedUpdate ()

override void	SimulationStart (float timeToSimulate, float substepTime)

void	LateUpdate ()

void	ResetToCurrentShape ()
	Resets particle orientations/positions to match the current pose of the bone hierarchy, and sets all their velocities to zero. More...

Public Member Functions inherited from Obi.ObiActor
delegate void	ActorCallback (ObiActor actor)

delegate void	ActorStepCallback (ObiActor actor, float simulatedTime, float substepTime)

delegate void	ActorBlueprintCallback (ObiActor actor, ObiActorBlueprint blueprint)

void	AddToSolver ()
	Adds this actor to its solver, if any. Automatically called by ObiSolver. More...

void	RemoveFromSolver ()
	Remove this actor from its solver, if any. Automatically called by ObiSolver. More...

virtual void	ProvideDeformableTriangles (ObiNativeIntList deformableTriangles, ObiNativeVector2List deformableUVs)

virtual int	GetDeformableEdgeCount ()

virtual bool	CopyParticle (int actorSourceIndex, int actorDestIndex)
	Copies all data (position, velocity, phase, etc) from one particle to another one. More...

void	TeleportParticle (int actorIndex, Vector3 position)
	Teleports one actor particle to a certain position in solver space. More...

virtual Matrix4x4	Teleport (Vector3 position, Quaternion rotation)
	Teleports the entire actor to a new location / orientation. More...

virtual bool	ActivateParticle ()
	Activates one particle. More...

virtual bool	DeactivateParticle (int actorIndex)
	Deactivates one particle. More...

virtual bool	IsParticleActive (int actorIndex)
	Returns whether a given particle is active. More...

virtual void	SetSelfCollisions (bool selfCollisions)
	Updates particle phases in the solver at runtime, including or removing the self-collision flag. More...

virtual void	SetOneSided (bool oneSided)
	Updates particle phases in the solver at runtime, including or removing the one-sided flag. More...

void	SetSimplicesDirty ()
	Marks simplices dirty. More...

void	SetConstraintsDirty (Oni.ConstraintType constraintType)
	Marks a given constraint type as dirty. More...

void	SetRenderingDirty (Oni.RenderingSystemType rendererType)
	Marks rendering dirty. More...

IObiConstraints	GetConstraintsByType (Oni.ConstraintType type)
	Returns the data representation of constraints of a given type being simulated by this solver. More...

virtual void	UpdateParticleProperties ()
	Call when some particle properties have been modified and need updating. More...

int	GetParticleRuntimeIndex (int actorIndex)
	Returns the index of this particle in the solver arrays. More...

Vector3	GetParticlePosition (int solverIndex)
	Given a solver particle index, returns the position of that particle in world space. More...

Quaternion	GetParticleOrientation (int solverIndex)
	Given a solver particle index, returns the orientation of that particle in world space. More...

Vector3	GetParticleRestPosition (int solverIndex)
	Given a solver particle index, returns the rest position of that particle. More...

Quaternion	GetParticleRestOrientation (int solverIndex)
	Given a solver particle index, returns the rest orientation of that particle. More...

void	GetParticleAnisotropy (int solverIndex, ref Vector4 b1, ref Vector4 b2, ref Vector4 b3)
	Given a solver particle index, returns the anisotropic frame of that particle in world space. More...

float	GetParticleMaxRadius (int solverIndex)
	Given a solver particle index, returns the maximum world space radius of that particle, in any axis. More...

Color	GetParticleColor (int solverIndex)
	Given a solver particle index, returns the color of that particle. More...

void	SetFilterCategory (int newCategory)
	Sets a given category value for all particles in the actor. More...

void	SetFilterMask (int newMask)
	Sets a given mask value for all particles in the actor. More...

void	SetMass (float mass)
	Sets the inverse mass of each particle so that the total actor mass matches the one passed by parameter. More...

float	GetMass (out Vector3 com)
	Returns the actor's mass (sum of all particle masses), and the position of its center of mass. More...

void	AddForce (Vector3 force, ForceMode forceMode)
	Adds an external force to all particles in the actor. More...

void	AddTorque (Vector3 force, ForceMode forceMode)
	Adds a torque to the actor. More...

void	ResetParticles ()
	Resets the position and velocity of all particles, to the values stored in the blueprint. More...

bool	SaveStateToBlueprint (ObiActorBlueprint bp)
	Resets the position and velocity of all particles, to the values stored in the blueprint. More...

void	ClearState ()

virtual void	Interpolate (float simulatedTime, float substepTime)

virtual void	OnSolverVisibilityChanged (bool visible)

Public Attributes
bool	fixRoot = true

bool	stretchBones = true

List< IgnoredBone >	ignored = new List<IgnoredBone>()

Public Attributes inherited from Obi.ObiActor
ObiNativeIntList	solverIndices
	Index of each one of the actor's particles in the solver. More...

List< int >[]	solverBatchOffsets
	For each of the actor's constraint types, offset of every batch in the solver. More...

int	groupID = 0

Protected Member Functions
override void	Awake ()

override void	OnDestroy ()

override void	OnValidate ()

Protected Member Functions inherited from Obi.ObiActor
virtual void	OnEnable ()

virtual void	OnDisable ()

void	SetSolver (ObiSolver newSolver)
	Forcibly changes the solver in charge of this actor More...

void	SetMassScale (float scale)
	Sets the mass of all particles in the actor to their blueprint values, multiplied by a scale factor. More...

virtual void	OnBlueprintRegenerate (ObiActorBlueprint blueprint)

void	UpdateCollisionMaterials ()

virtual void	SwapWithFirstInactiveParticle (int actorIndex)

void	StoreState ()

Protected Attributes
ObiBoneBlueprint	m_BoneBlueprint

bool	m_SelfCollisions = false

BonePropertyCurve	_radius = new BonePropertyCurve(0.1f, 1)

BonePropertyCurve	_mass = new BonePropertyCurve(0.1f, 1)

BonePropertyCurve	_rotationalMass = new BonePropertyCurve(0.1f, 1)

bool	_skinConstraintsEnabled = true

BonePropertyCurve	_skinCompliance = new BonePropertyCurve(0.01f, 1)

BonePropertyCurve	_skinRadius = new BonePropertyCurve(0.1f, 1)

bool	_stretchShearConstraintsEnabled = true

BonePropertyCurve	_stretchCompliance = new BonePropertyCurve(0, 1)

BonePropertyCurve	_shear1Compliance = new BonePropertyCurve(0, 1)

BonePropertyCurve	_shear2Compliance = new BonePropertyCurve(0, 1)

bool	_bendTwistConstraintsEnabled = true

BonePropertyCurve	_torsionCompliance = new BonePropertyCurve(0, 1)

BonePropertyCurve	_bend1Compliance = new BonePropertyCurve(0, 1)

BonePropertyCurve	_bend2Compliance = new BonePropertyCurve(0, 1)

BonePropertyCurve	_plasticYield = new BonePropertyCurve(0, 1)

BonePropertyCurve	_plasticCreep = new BonePropertyCurve(0, 1)

bool	_aerodynamicsEnabled = true

BonePropertyCurve	_drag = new BonePropertyCurve(0.05f, 1)

BonePropertyCurve	_lift = new BonePropertyCurve(0.02f, 1)

Protected Attributes inherited from Obi.ObiActor
int	m_ActiveParticleCount = 0

ObiSolver	m_Solver

bool	m_Loaded = false

ObiCollisionMaterial	m_CollisionMaterial

bool	m_SurfaceCollisions = false

float	m_MassScale = 1

Properties
int	Filter `[get, set]`
	Collision filter value used by fluid particles. More...

bool	selfCollisions `[get, set]`
	Whether particles in this actor colide with particles using the same phase value. More...

BonePropertyCurve	radius `[get, set]`
	Particle radius distribution over this bone hierarchy length. More...

BonePropertyCurve	mass `[get, set]`
	Mass distribution over this bone hierarchy length. More...

BonePropertyCurve	rotationalMass `[get, set]`
	Rotational mass distribution over this bone hierarchy length. More...

bool	skinConstraintsEnabled `[get, set]`
	Whether this actor's skin constraints are enabled. More...

BonePropertyCurve	skinCompliance `[get, set]`
	Compliance of this actor's skin constraints. More...

BonePropertyCurve	skinRadius `[get, set]`
	Compliance of this actor's skin radius More...

bool	stretchShearConstraintsEnabled `[get, set]`
	Whether this actor's stretch/shear constraints are enabled. More...

BonePropertyCurve	stretchCompliance `[get, set]`
	Compliance of this actor's stretch/shear constraints, along their length. More...

BonePropertyCurve	shear1Compliance `[get, set]`
	Shearing compliance of this actor's stretch/shear constraints, along the first axis orthogonal to their length. More...

BonePropertyCurve	shear2Compliance `[get, set]`
	Shearing compliance of this actor's stretch/shear constraints, along the second axis orthogonal to their length. More...

bool	bendTwistConstraintsEnabled `[get, set]`
	Whether this actor's bend/twist constraints are enabled. More...

BonePropertyCurve	torsionCompliance `[get, set]`
	Torsional compliance of this actor's bend/twist constraints along their length. More...

BonePropertyCurve	bend1Compliance `[get, set]`
	Bending compliance of this actor's bend/twist constraints along the first axis orthogonal to their length. More...

BonePropertyCurve	bend2Compliance `[get, set]`
	Bending compliance of this actor's bend/twist constraints along the second axis orthogonal to their length. More...

BonePropertyCurve	plasticYield `[get, set]`
	Threshold for plastic behavior. More...

BonePropertyCurve	plasticCreep `[get, set]`
	Percentage of deformation that gets absorbed into the rest shape per second, once deformation goes above the plasticYield threshold. More...

bool	aerodynamicsEnabled `[get, set]`
	Whether this actor's aerodynamic constraints are enabled. More...

BonePropertyCurve	drag `[get, set]`
	Aerodynamic drag value. More...

BonePropertyCurve	lift `[get, set]`
	Aerodynamic lift value. More...

override ObiActorBlueprint	sourceBlueprint `[get]`

ObiBoneBlueprint	boneBlueprint `[get, set]`

Properties inherited from Obi.ObiActor
int	deformableEdgesOffset `[get, set]`

ObiSolver	solver `[get]`
	The solver in charge of simulating this actor. More...

bool	isLoaded `[get]`
	True if the actor blueprint has been loaded into a solver. If true, it guarantees actor.solver, actor.solverIndices and actor.solverBatchOffsets won't be null. More...

ObiCollisionMaterial	collisionMaterial `[get, set]`
	The collision material being used by this actor. More...

virtual bool	surfaceCollisions `[get, set]`
	Whether to use simplices (triangles, edges) for contact generation. More...

float	massScale `[get, set]`
	Scale applied to this actor's particle masses. More...

int	particleCount `[get]`
	Amount of particles allocated by this actor. More...

int	activeParticleCount `[get]`
	Amount of particles in use by this actor. More...

bool	usesOrientedParticles `[get]`
	Whether this actors makes use of particle orientations or not. More...

virtual bool	usesAnisotropicParticles `[get]`
	If true, it means particles may not be completely spherical, but ellipsoidal. More...

Oni.SimplexType	simplexTypes `[get]`

Matrix4x4	actorLocalToSolverMatrix `[get]`
	Matrix that transforms from the actor's local space to the solver's local space. More...

Matrix4x4	actorSolverToLocalMatrix `[get]`
	Matrix that transforms from the solver's local space to the actor's local space. More...

abstract ObiActorBlueprint	sourceBlueprint `[get]`
	Reference to the blueprint asset used by this actor. More...

ObiActorBlueprint	sharedBlueprint `[get]`
	Reference to the blueprint in use by this actor. More...

ObiActorBlueprint	blueprint `[get]`
	Returns a unique instance of this actor's sourceBlueprint. More...

Properties inherited from Obi.IObiParticleCollection
int	particleCount `[get]`

int	activeParticleCount `[get]`

bool	usesOrientedParticles `[get]`

Properties inherited from Obi.IStretchShearConstraintsUser
bool	stretchShearConstraintsEnabled `[get, set]`

Properties inherited from Obi.IBendTwistConstraintsUser
bool	bendTwistConstraintsEnabled `[get, set]`

Properties inherited from Obi.ISkinConstraintsUser
bool	skinConstraintsEnabled `[get, set]`

Properties inherited from Obi.IAerodynamicConstraintsUser
bool	aerodynamicsEnabled `[get, set]`

Additional Inherited Members
Events inherited from Obi.ObiActor
ActorBlueprintCallback	OnBlueprintLoaded
	Called when the actor blueprint has been loaded into the solver. More...

ActorBlueprintCallback	OnBlueprintUnloaded
	Called when the actor blueprint has been unloaded from the solver. More...

ActorBlueprintCallback	OnBlueprintRegenerated
	Called when the blueprint currently in use has been re-generated. This will always be preceded by a call to OnBlueprintUnloaded and OnBlueprintLoaded. More...

ActorStepCallback	OnSimulationStart
	Called before simulation starts. More...

ActorStepCallback	OnSimulationEnd
	Called after simulation ends. More...

ActorCallback	OnRequestReadback
	You can use this callback to issue GPU->CPU readbacks. More...

ActorStepCallback	OnInterpolate
	Called at the end of each frame, after interpolation but before rendering. More...

Member Function Documentation

void Obi.ObiBone.ResetToCurrentShape ( )

Resets particle orientations/positions to match the current pose of the bone hierarchy, and sets all their velocities to zero.

Property Documentation

bool Obi.ObiBone.aerodynamicsEnabled

getset

Whether this actor's aerodynamic constraints are enabled.

BonePropertyCurve Obi.ObiBone.bend1Compliance

getset

Bending compliance of this actor's bend/twist constraints along the first axis orthogonal to their length.

BonePropertyCurve Obi.ObiBone.bend2Compliance

getset

Bending compliance of this actor's bend/twist constraints along the second axis orthogonal to their length.

bool Obi.ObiBone.bendTwistConstraintsEnabled

getset

Whether this actor's bend/twist constraints are enabled.

BonePropertyCurve Obi.ObiBone.drag

getset

Aerodynamic drag value.

int Obi.ObiBone.Filter

getset

Collision filter value used by fluid particles.

BonePropertyCurve Obi.ObiBone.lift

getset

Aerodynamic lift value.

BonePropertyCurve Obi.ObiBone.mass

getset

Mass distribution over this bone hierarchy length.

BonePropertyCurve Obi.ObiBone.plasticCreep

getset

Percentage of deformation that gets absorbed into the rest shape per second, once deformation goes above the plasticYield threshold.

BonePropertyCurve Obi.ObiBone.plasticYield

getset

Threshold for plastic behavior.

Once bending goes above this value, a percentage of the deformation (determined by plasticCreep) will be permanently absorbed into the rod's rest shape.

BonePropertyCurve Obi.ObiBone.radius

getset

Particle radius distribution over this bone hierarchy length.

BonePropertyCurve Obi.ObiBone.rotationalMass

getset

Rotational mass distribution over this bone hierarchy length.

bool Obi.ObiBone.selfCollisions

getset

Whether particles in this actor colide with particles using the same phase value.

BonePropertyCurve Obi.ObiBone.shear1Compliance

getset

Shearing compliance of this actor's stretch/shear constraints, along the first axis orthogonal to their length.

BonePropertyCurve Obi.ObiBone.shear2Compliance

getset

Shearing compliance of this actor's stretch/shear constraints, along the second axis orthogonal to their length.

BonePropertyCurve Obi.ObiBone.skinCompliance

getset

Compliance of this actor's skin constraints.

bool Obi.ObiBone.skinConstraintsEnabled

getset

Whether this actor's skin constraints are enabled.

BonePropertyCurve Obi.ObiBone.skinRadius

getset

Compliance of this actor's skin radius

BonePropertyCurve Obi.ObiBone.stretchCompliance

getset

Compliance of this actor's stretch/shear constraints, along their length.

bool Obi.ObiBone.stretchShearConstraintsEnabled

getset

Whether this actor's stretch/shear constraints are enabled.

BonePropertyCurve Obi.ObiBone.torsionCompliance

getset

Torsional compliance of this actor's bend/twist constraints along their length.

The documentation for this class was generated from the following file:

Assets/Obi/Scripts/RopeAndRod/Actors/ObiBone.cs

Classes

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Properties

Additional Inherited Members

Member Function Documentation

Property Documentation
